3D mesh compression reduces the size of 3D files while keeping their quality intact. It’s vital for industries like gaming, design, and 3D printing, where smaller, efficient files improve performance and save storage. Here's what you need to know:
- What It Is: Compresses geometry, connectivity, and textures in 3D models.
- Why It Matters:
- Faster Load Times: Smaller files load quicker.
- Less Storage: Saves space and resources.
- Better Performance: Optimized meshes render faster.
- How It’s Done:
- Geometry Compression: Simplifies vertex data using techniques like quantization or delta encoding.
- Connectivity Compression: Reduces mesh structure redundancy with methods like Edge Breaker or Triangle Strip.
- Attribute Compression: Optimizes textures, normals, and UV maps for smaller sizes.
Tools like Sloyd automate these processes, offering real-time optimization for game-ready assets. With advancements like machine learning and progressive compression, the future of 3D mesh compression is all about efficiency and precision.
GLTF Draco Compression tutorial - byte size
3D Mesh Data Basics
Understanding the basics of a 3D mesh - its vertices, edges, and faces - is the first step toward effective compression.
Parts of a 3D Mesh
A 3D mesh is built from three main components:
- Vertices: These are points in 3D space, defined by x, y, and z coordinates. They form the foundation of the mesh.
- Edges: The lines that connect vertices, creating the framework of the model.
- Faces: Surfaces formed by connecting edges. These are usually triangles or polygons.
Take a cube as an example - it consists of 8 vertices, 12 edges, and 6 faces. Understanding these parts helps pinpoint repetitive patterns that compression techniques can target.
Standard File Formats
3D mesh data is stored in several file formats, each with its own strengths:
| Format | Primary Use | Key Features |
|---|---|---|
| OBJ | General 3D modeling | Text-based, easy to use, and widely supported |
| STL | 3D printing | Focuses on triangle-based meshes, available in binary or ASCII |
| FBX | Game development | Includes advanced features like animation support |
While the formats vary, most 3D meshes share a common issue: redundant data that can be compressed.
Data Redundancy in Meshes
Redundant data is common in 3D meshes, making them ideal candidates for compression:
- Vertex Position Redundancy: Vertices are often reused across multiple faces, leading to repeated coordinate data.
- Connectivity Redundancy: Edges and faces frequently follow repetitive patterns, especially in symmetrical designs.
- Attribute Redundancy: Surface details like normals, UV coordinates, and texture data often repeat across neighboring faces, creating room for optimization.
Main Compression Methods
Reducing the size of 3D mesh files requires techniques tailored to different types of mesh data. Below, we break down the main methods used to achieve this.
Compressing Geometry
Geometry compression minimizes the data needed to store vertex coordinates. Two widely used methods are:
Quantization
- Converts floating-point vertex coordinates into integers, reducing precision.
- Maps coordinates onto a fixed grid for more compact storage.
Delta Encoding
- Stores the differences between consecutive vertices instead of full coordinates.
- Works particularly well with structured meshes where vertex positions follow predictable patterns.
These techniques help streamline geometry data, paving the way for efficient handling of connectivity information.
Compressing Connectivity
Connectivity compression focuses on encoding the relationships between vertices, edges, and faces in a compact way, ensuring the mesh structure remains intact. Popular methods include:
| Technique | Description | Typical Results |
|---|---|---|
| Edge Breaker | Encodes connectivity through a sequence of operations | 2–3 bits per triangle |
| Valence-Based | Uses vertex degree patterns for more efficient encoding | 1.5–2.5 bits per vertex |
| Triangle Strip | Arranges triangles into sequential strips to cut redundancy | Around 40–60% reduction in connectivity data |
These methods significantly reduce the storage requirements for mesh structure data.
Compressing Mesh Attributes
Mesh attributes - like textures, colors, and normals - can add significantly to file sizes. Compression methods for these elements ensure smaller files without sacrificing visual quality:
Texture Compression
- Applies image compression techniques specifically designed for textures.
- Balances visual fidelity with real-time decompression, ideal for gaming and interactive applications.
Normal Map Optimization
- Reduces the precision of normal vectors, often by encoding them in spherical coordinates, to retain surface details while saving space.
UV Coordinate Compression
- Tools like Sloyd integrate UV mapping and attribute compression to optimize texture space.
- Features include adding textures based on user input and implementing Level of Detail control.
sbb-itb-d35aaa6
Advanced Compression Methods
Expanding beyond basic techniques, advanced methods refine mesh data for dynamic and efficient applications.
Progressive Compression
This method allows 3D meshes to load at different levels of detail. It begins with a low-resolution version that uses only a small portion of the file size. Additional data is then streamed in packets to gradually improve the mesh's quality. This ensures the visual quality gets better as the model loads, all while keeping the process efficient.
Machine Learning Compression
Neural networks can analyze large datasets to identify the best ways to compress assets. This approach supports:
- Real-time compression of assets
- Retaining essential features like mesh topology, UV mapping, and textures
For example, Sloyd's AI-driven platform uses this technology to generate and compress game-ready assets in real time through API integration.
Mesh Optimization Methods
Techniques like Quadric Error Metrics, Adaptive Subdivision, smart retopology, and Level of Detail (LOD) generation simplify meshes while keeping key details intact. These methods help create 3D assets that look great, take up less space, and use fewer resources without compromising visual quality.
Using Compression in Production
Compression Guidelines
When applying mesh compression, it's crucial to adjust your approach based on the platform. Focus on these core factors:
- Asset complexity: Models with high polygon counts may need more aggressive compression.
- Platform limitations: Mobile devices often require smaller, lighter assets compared to desktops.
- Loading requirements: Progressive compression works well for streaming scenarios.
- Memory constraints: Take both storage space and runtime memory usage into account.
These principles help tools like Sloyd refine production workflows to meet specific needs.

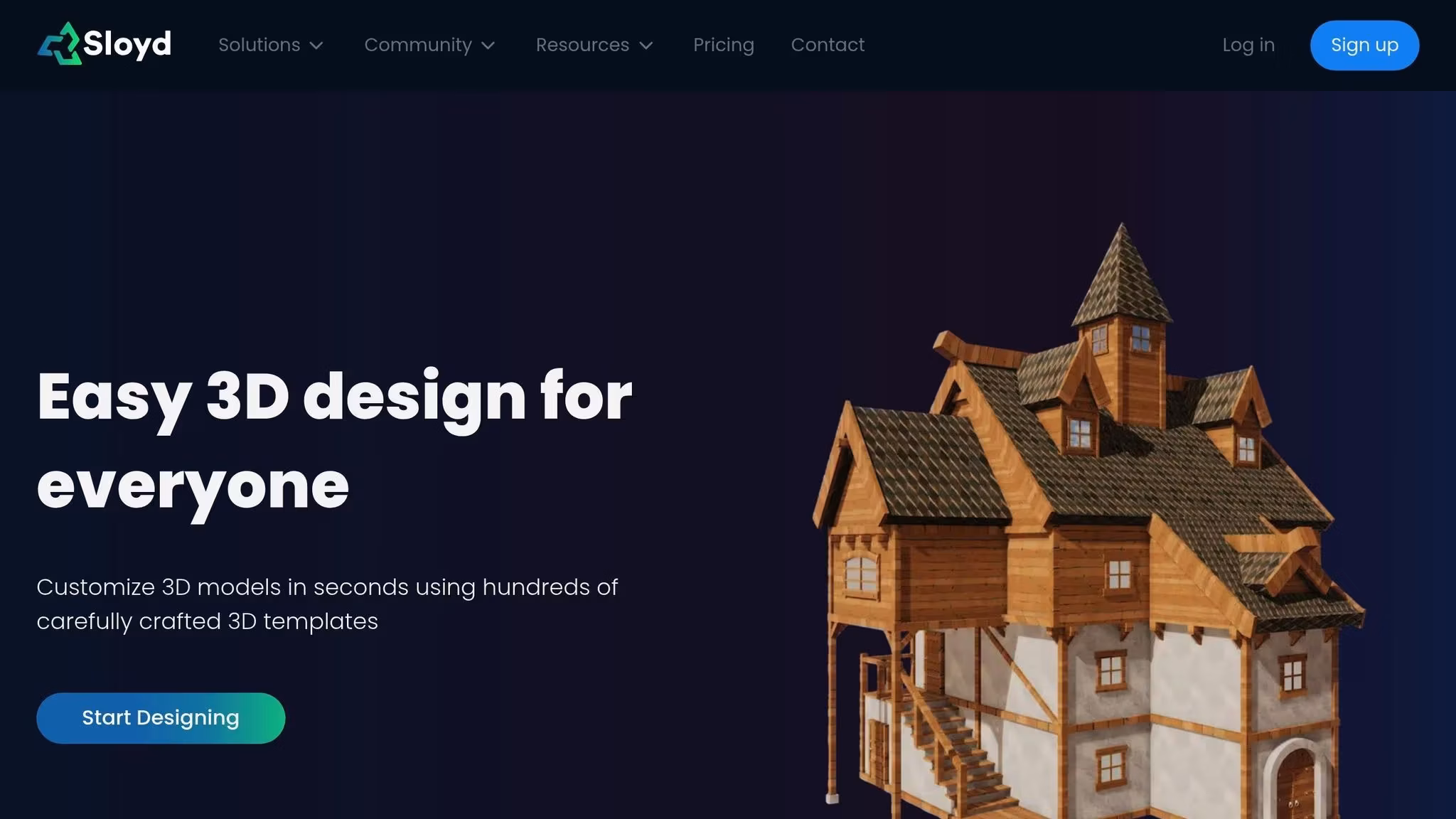

Sloyd's Model Generation Tools
Sloyd simplifies the compression process by automating tasks such as UV mapping, LOD adjustments, and real-time asset optimization.
Here’s how Sloyd enhances your workflow:
- Automatic UV mapping: Generates optimized UV layouts without manual input.
- Dynamic LOD control: Easily tweak detail levels with intuitive sliders.
- Component separation: Breaks models into parts for better texturing and animation performance.
- Real-time optimization: Automatically fine-tunes assets during generation for peak efficiency.
Format Compatibility
To ensure smooth integration, align file formats and platform settings with standard practices. Proper compatibility avoids pipeline issues and keeps workflows seamless.
| Stage | Consideration | Solution |
|---|---|---|
| Export | File format support | Use commonly supported formats like FBX, GLTF, or OBJ. |
| Integration | Pipeline compatibility | Confirm the formats work with your target applications. |
| Runtime | Performance optimization | Apply compression settings tailored to the platform. |
With Sloyd's API, you can generate optimized 3D assets directly within your game or application. This ensures the assets are ready to use immediately, saving time and effort in production.
Summary
This guide has explored both the technical and production aspects of 3D mesh compression, focusing on methods that improve efficiency.
Key Compression Methods
Modern 3D mesh compression blends geometry reduction techniques with machine learning. Some key methods include:
- Geometry compression: Optimizing vertices to reduce file size.
- Connectivity reduction: Using smart indexing to simplify mesh structures.
- Attribute compression: Compressing textures and material data.
- Progressive compression: Designed for smoother streaming applications.
- Machine learning optimization: Enhancing real-time processing capabilities.
These approaches form the foundation of efficient workflows, as demonstrated by Sloyd's advanced techniques.
Sloyd's Workflow Advantages
Sloyd has redefined 3D asset creation with its AI-driven tools. It automates tasks like UV mapping, LOD (Level of Detail) generation, texture compression, and component separation. This streamlines workflows for game developers and 3D artists, saving time and effort.
The Future of Mesh Compression
Looking ahead, AI is set to play a bigger role in mesh compression. Smarter algorithms are enabling more precise compression choices, while procedural and AI-driven tools are becoming standard for real-time asset creation and optimization.
Tools like Sloyd's API now integrate seamlessly into production pipelines, creating optimized 3D assets with minimal manual effort. These developments point to a future where compression is not only more automated but also increasingly tailored to specific needs, lightening the workload for creators while boosting efficiency.
FAQs
How does 3D mesh compression enhance performance in gaming and design projects?
3D mesh compression enhances performance by reducing the size of 3D assets without compromising their quality. This optimization allows for faster loading times, smoother rendering, and more efficient use of resources in gaming and design applications.
Platforms like Sloyd further streamline workflows by offering AI-powered 3D model generation with optimized outputs ready for immediate use. This saves developers and designers valuable time while ensuring high-quality results tailored for games, apps, and other creative projects.
What is the difference between geometry, connectivity, and attribute compression in 3D meshes?
In 3D mesh compression, geometry, connectivity, and attribute compression each serve distinct purposes:
- Geometry compression focuses on reducing the storage size of the vertex coordinates that define the shape of the mesh. This ensures the mesh maintains its overall structure while using less data.
- Connectivity compression optimizes how the relationships between vertices, edges, and faces are stored, preserving the mesh topology with minimal data.
- Attribute compression reduces the size of additional data, like colors, normals, or texture coordinates, associated with the mesh, ensuring these details are retained efficiently.
By combining these techniques, 3D meshes can achieve significant file size reductions while maintaining their visual and structural integrity.
How does machine learning improve the efficiency of 3D mesh compression?
Machine learning can significantly enhance the efficiency of 3D mesh compression by identifying patterns and redundancies within 3D models. Through advanced algorithms, it can optimize the way data is stored, reducing file sizes while maintaining visual quality and structural integrity. This makes it ideal for applications like gaming, 3D printing, and virtual reality, where performance and storage are critical.
By automating complex processes, machine learning also streamlines workflows, saving time and resources for developers and designers. This technology ensures that compressed 3D meshes are not only smaller but also optimized for real-time rendering and other performance-intensive tasks.
